Typical Features

touchscreen

Touch Screen

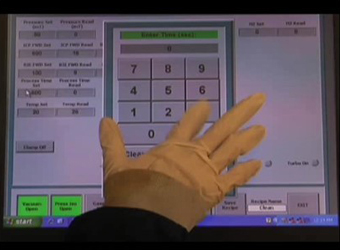

The touch screen interface provides the operator with full Operator process information at all times. The intuitive software interface guides the operator Interface through each sequence in a logical fashion, and gives fingertip control of all process parameters.


plc

PLC

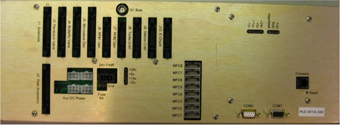

A Program Logic Controller provides simple and reliable system control. The Standard Trion Technology interface ensures quick connections to all components, and the additional ports allow for future upgrades.


Minilock Reactor

Reactor

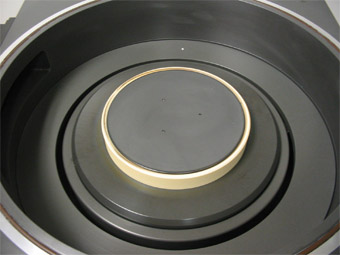

The cathode and anode are each machined out of single blocks of aluminum reducing the possibility of vacuum leaks. Optional Heater sticks are embedded into the chamber, which can be controlled from 30-80C to increase process reproducibility, and reduce sidewall deposition


mechanical-chuck-cropped

Mechanical Chuck

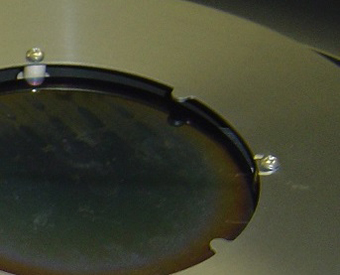

The Chuck includes an easily removable clamp ring to hold the substrate in place. Pressurized Helium is introduced to the back side of the substrate to maintain the same temperature as the chuck. The pressure and flow of this helium is monitored on the screen, and is a good indication of how effective the substrate is clamped.


cryo

Cryo Chuck Module

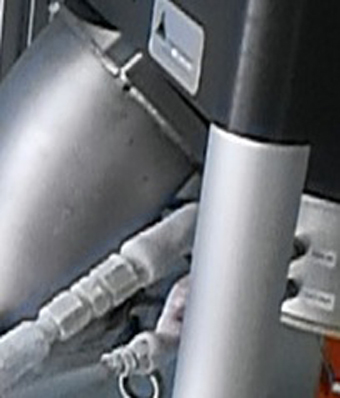

Liquid Nitrogen is delivered to the chuck through a Cryogenic Ceramic Break. A replaceable heater coil is attached to the rear of the chuck so that the temperature can be controlled from -150C to +250C through a heat/cool cycle. An Automatic LN2/Fluid control box is included to allow the Cryo chuck to operate more efficiently.


icp-internal

ICP

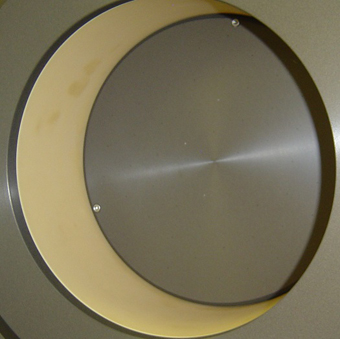

The Inductively Coupled Plasma source has been designed to allow rapid plasma strikes at very low powers.


mfc

Gas Delivery

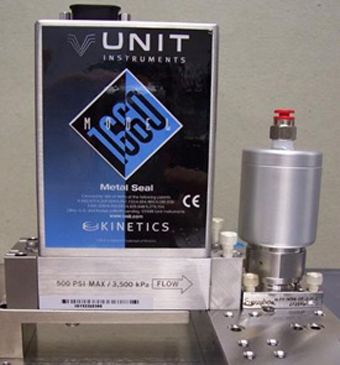

All plumbing utilizes surface mount, C-seal technology, and orbital welded VCR fittings.


RF Bias

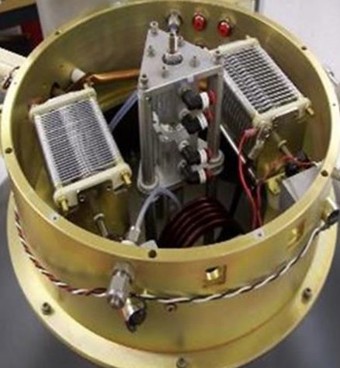

The uniquely designed network is built as an integral part of the bottom electrode assembly to ensure accurate tuning, low transmission loss and virtually no RF radiation outside the network itself. The network uses a easily accesssed phase magnitude sensor and amplifier to provide instantaneous feedback for quick precise tuning.


turbo

Pumping Systems

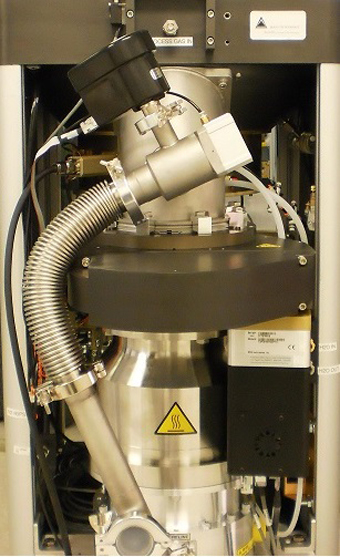

The turbo pump is mounted in a position that provides easy removal with minimal effort, and is backed by a rotary pump to provide efficient pumping. The controllable pumpdown heater reduces the possibility of contaminants attaching to the sides of the pipes.


slit-valve-blank

Loadlock Upgradable

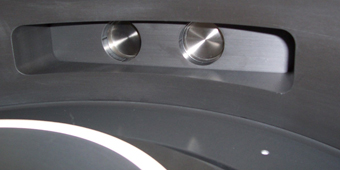

All Phantom systems have a blank installed behind the touchscreen which allows an easy upgrade to a loadlock when funds become available. In addition, the blank can have additional diagnostic ports added to it (as shown here).


semi-logo

Safety

Our systems are designed and manufactured following Semi S2 guidelines and are CE compliant. A large, well-marked EPO button is placed on the front of the system so shut-down mode is easily accomplished should any dangerous situation arise.


phantom-footprint

Facilities

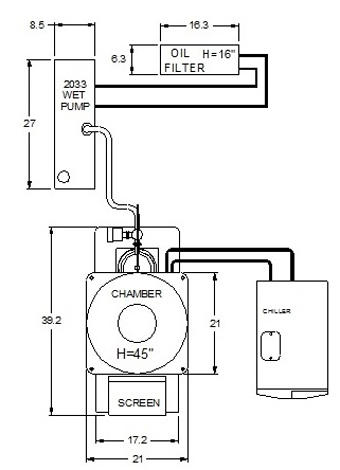

Facility schematics can be provided upon request.
